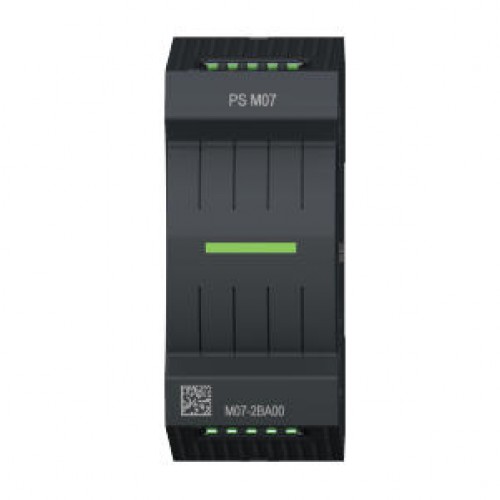

307-1BA00 - Power supply | Power supply
Order no. |
M07-2BA00 |
| Type | PS M07 |
General information |
|
| Note | - |
| Features | Input AC
120-240 V Output 24V DC 1.5 A 36 W Efficiency >= 88 |
Technical data power supply |
|
| Input voltage (rated value) | AC 120...240 V |
| Input voltage (permitted range) | AC 90...264 V |
| Mains frequency (rated value) | 50...60 Hz |
| Mains frequency (permitted range) | 47...63 Hz |
| Input current (at 120 V) | 0.9 A |
| Input current (at 230 V) | 0.6 A |
| Inrush current (at 25 °C) | 30 A |
| I²t | - |
| Power consumption typ. | 41 W |
| Output voltage (rated value) | 24 V |
| Output current (rated value) | 1.5 A |
| Power supply parallel switchable | - |
| Protect type | short circuits, overload |
| Ripple of output voltage (max.), BW=20 MHz | 25 mV |
| Efficiency typ. | 88 % |
| Power loss typ. | 5 W |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | no |
| Diagnostics information read-out | none |
| Supply voltage display | none |
| Group error display | none |
| Channel error display | none |
Housing |
|
| Material | PC / PPE GF10 |
| Mounting | Profile rail 35mm |
Mechanical data |
|
| Dimensions (WxHxD) | 35 mm x 88 mm x 71 mm |
| Net weight | 155 g |
| Weight including accessories | 155 g |
| Gross weight | 170 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -40 °C to 80 °C |
Certifications |
|
| UL certification | yes |
| KC certification | in preperation |
PSM07 - Power supply Input AC 120-240 V Output 24V DC 1.5 A 36 W Efficiency >= 88
- Brand: Yaskawa
- Product Code: PSM07
- Availability: In Stock
-
