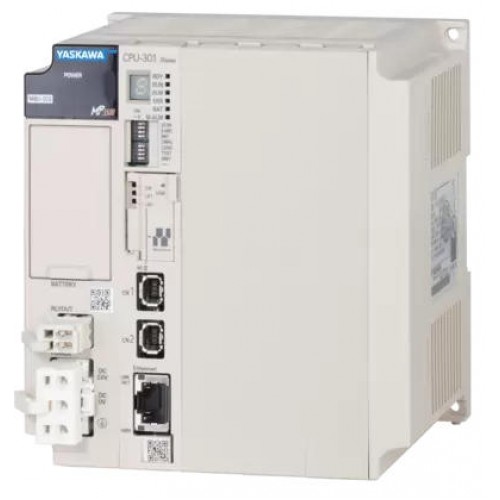

The MP3300iec is the newest member of the MPiec series. It offers:

IEC61131-3 and PLCopen programming standards

MECHATROLINK-III motion network

1, 3 or 8 option modules

4, 8, 20, 32 or 62 motion axes

Features

Communication Protocols

Open standards EtherNet/IP, Modbus/TCP and others for connectivity to many peripheral devices on the market.Standard Programming Languages

IEC61131-3 means that programs are developed and executed with predictable behavior.Programmable Amplifier Outputs

The controller can operate local SERVOPACK outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary.Controller-Centric Commissioning

The MECHATROLINK motion network provides a channel for configuring the machine from a single location with one software tool.A Multitude of Options

Choose from eight option cards offered for the expansion slots to accommodate most machine requirements.Remote I/O

Use Yaskawa's VIPA SLIO EtherNet/P modules to meet all your remote I/O needs. Numerous third-party remote I/Os such as Phoenix, Wago, and Opto 22 can also be interfaced with the system via MECHATROLINK and Ethernet.Web Server

A built-in web server offers standard controller diagnostic information eliminating the need for special software for maintenance personnelRS-274 G-code available with all Yaskawa kinematic libraries

4 degrees of freedom (MP3300iec-ER and 5-Axis Simultaneous Control Toolbox required for full 6 degrees of freedom)Linear interpolation, circular interpolation, and tangent followingWork coordinate system offset and tool offsetPause, continue and feed-rate override
