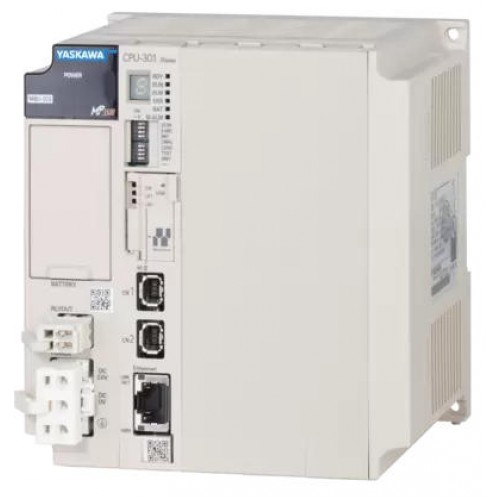

  • MP3000 Up to 256 Axes

       Specifications

Items MP3300 MP3200
CPU-301 (16 axes)
CPU-302 (16 axes)		 CPU-301 (32 axes)
CPU-302 (32 axes)		 CPU-201 CPU-202
Performance comparison of CPU Module*1 CPU-301: 1.5
CPU-302: 4.0		 CPU-301: 1.5
CPU-302: 4.0		 4.0 6.0
Number of slots (on main rack) 1/3/8 3/5/8
Rack expansion Possible
Multi-CPU configuration Not Possible Possible*2
Ethernet 100Base-TX x1 port 100Base-TX x2 ports (HUB)*3
USB I/F Provided (for storage device)
MECHATROLINK I/F Provided
(CPU-301 250 µs, CPU-302 125 µs*4)		 Provided
(250 µs*4)		 Provided
(125 µs*4)
Number of controlled axes SVC 16 axes 32 axes
SVR 16 axes 32 axes
Maximum number of controlled axes 256 axes (when SVB-01 or SVC-01 option modules are used, or when racks are expanded)
Program memory capacity Data tracing 256 K words 1 M words
Table data 1 MB 3 MB
M registers 1 M words
User memory 15 MB 31 MB
Optional modules All MP2000 series optional modules available
MotormanSync-MP Ethernet connection Ethernet MP3000 bus connection
Basic
functions		 Number of ladder programs High-speed scan DWGs: max. 1000, Low-speed scan DWGs: max. 2000.
User function DWGs: max. 2000, Motion programs: max. 512
Register types S/M/G/I/O/C/D/#
Data types B/W/L/Q/F/D/A
Index registers Subscripts I/J, and array registers
Register capacity M registers: 1 M words, G registers: 2 M words
Motion
control
functions		 Slave functions Supported
Slave CPU synchronization Supported
Communications
functions		 Automatic reception Supported (Maximum number of automatic reception connections: 10)
File transfer functions Supported (FTP server/client)
Data tracing functions Number of groups 1, 2, 4 (selectable)
Trace memory 256 k words/4 groups 1 M words / 4 groups
Traceable data points 16 points/group
Data logging functions Number of groups 4
Number of log files Built-in RAM disk (max. 8 MB), or USB memory device (4 GB*1)
Data logging points 64 points
USB memory functions Backup/restore of project files, data logging, import/export of register data
Linkage
functions
for Σ-7
Servo Drives		 Servo tracing Supported
Monitoring Supported
Multi-axis tuning Development planning*6
  1. When compared to MP2310 and MP2200/CPU-02
  2. Up to 5 modules, including the main CPU module
  3. Built-in HUB function
  4. Minimum communications cycle
  5. When using recommended USB memory device
  6. Under development
