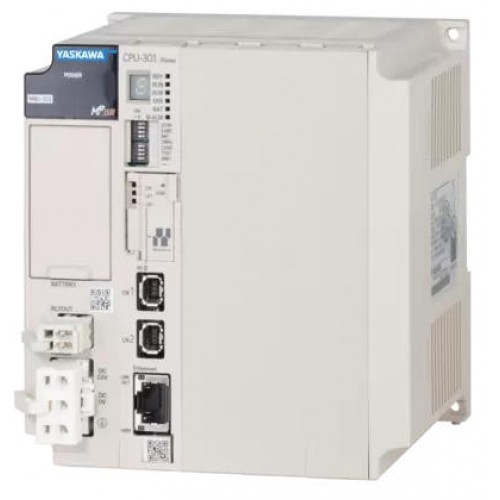

The MP2300Siec is a single slot multi-axes controller offering:

IEC61131-3 and PLCopen programming standards

MECHATROLINK-II as the motion network

1 slot for option module

4, 8, or 16 motion axes

Features

Communication Protocols

Open standards EtherNet/IP and Modbus/TCP for connectivity to many peripheral devices on the market.

Standard Programming Languages

IEC61131-3 means that programs are developed and executed with predictable behavior.

Programmable Amplifier Outputs

The controller can operate local SERVOPACK outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary.

Controller-Centric Commissioning

The MECHATROLINK motion network provides a channel for configuring the machine from a single location with one software tool.

A Multitude of Options

Choose from eight option cards offered for the expansion slot to accommodate most machine requirements.

Remote I/O

Numerous third-party remote I/O modules such as Phoenix, Wago, and Opto 22 can be interfaced with the system via MECHATROLINK and Ethernet.

Web Server

A built in web server offers standard controller diagnostic information eliminating the need for special software for maintenance personnel
