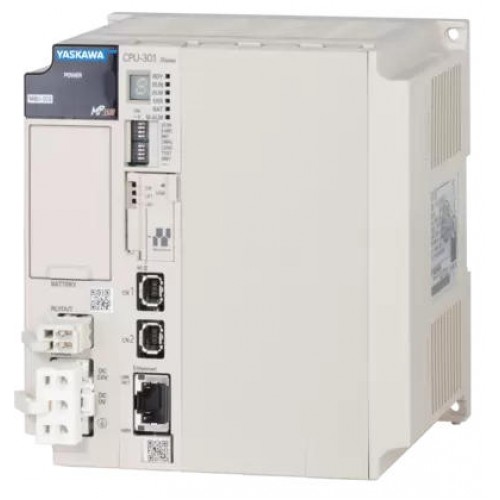

The MP2300 synchronizes sequence control and motion control in one tightly integrated platform. Position, speed, torque, and phase control such as electronic gearing and electronic cam profiles are available for a variety of applications.

Features

Flexibility

Optional Modules can be inserted into any of the three slots, so the optimum system can be built for your machine.

High Performance

High control characteristics have been realized by increasing the CPU and Motion Network (MECHATROLINK-II) speed.

MECHATROLINK-II baud rate: 2.5 times faster

CPU processing speed: 1.4 times faster than MP930

MECHATROLINK-II enables position control, speed control, and torque control and makes precise synchronous control possible. The control mode can also be changed while online, facilitating complicated machine operations.

Select the appropriate Communication Module to use the following open networks.

Ethernet

DeviceNet

PROFIBUS

MPLINK

CP-215

FL-net

EtherNet/IP

EtherCAT

CompoNet

PROFINET

CC-Link

Easy to Use

The time of machine development can be greatly reduced by using the self-configuration function that automatically detects devices connected to MECHATROLINK and automatically sets the required parameters.

The application program converter can utilize your previous software assets with their accumulated databanks of specific knowledge to improve the system further.
