M32-1BD40 - Signal modules analog | Analog output modules
Order no. |
M32-1BD40 |
| Type | SM M32 - Analog output |
| Module ID | 0504 25E0 |
General information |
|
| Note | - |
| Features |
4x AO 12 Bit Current 0/4...20 mA |
Current consumption/power loss |
|
| Current consumption from backplane bus | 70 mA |
| Current consumption from load voltage L+ (without load) | 18 mA |
| Power loss | 0.8 W |
Technical data analog outputs |
|
| Number of outputs | 4 |
| Cable length, shielded | 200 m |
| Rated load voltage | DC 24 V |
| Reverse polarity protection of rated load voltage | |
| Current consumption from rated load voltage | - |
| Voltage output short-circuit protection | - |
| Voltage outputs | - |
| Min. load resistance (voltage range) | - |
| Max. capacitive load (current range) | - |
| Max. inductive load (current range) | - |
| Output voltage ranges | - |
| Operational limit of voltage ranges | - |
| Basic error limit voltage ranges | - |
| Destruction limit against external applied voltage | - |
| Current outputs | - |
| Max. in load resistance (current range) | 350 Ω |
| Max. inductive load (current range) | 10 µH |
| Typ. open circuit voltage current output | 12 V |
| Output current ranges |
0 mA ... +20 mA +4 mA ... +20 mA |
| Operational limit of current ranges | +/-0.4% ... +/-0.5% |
| Basic error limit current ranges | +/-0.2% ... +/-0.3% |
| Destruction limit against external applied voltage | max. 12V (30V for 1s) |
| Settling time for ohmic load | 0.25 ms |
| Settling time for capacitive load | - |
| Settling time for inductive load | 1.5 ms |
| Resolution in bit | 12 |
| Conversion time | 2 ms all channels |
| Substitute value can be applied | no |
| Output data size | 8 Byte |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | yes |
| Diagnostics information read-out | possible |
| Supply voltage display | green LED |
| Group error display | Bicolour green/red LED |
| Channel error display | red LED per channel |
Isolation |
|
| Between channels | - |
| Between channels of groups to | - |
| Between channels and backplane bus | |
| Between channels and power supply | |
| Max. potential difference between circuits | - |
| Max. potential difference between inputs (Ucm) | - |
| Max. potential difference between Mana and Mintern (Uiso) | DC 75 V/ AC 50 V |
| Max. potential difference between inputs and Mana (Ucm) | - |
| Max. potential difference between inputs and Mintern (Uiso) | - |
| Max. potential difference between Mintern and outputs | - |
| Insulation tested with | DC 500 V |
Datasizes |
|
| Input bytes | 0 |
| Output bytes | 8 |
| Parameter bytes | 10 |
| Diagnostic bytes | 20 |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 26 mm x 88 mm x 71 mm |
| Net weight | 94 g |
| Weight including accessories | 94 g |
| Gross weight | 107 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL certification | in preparation |
| KC certification | in preparation |

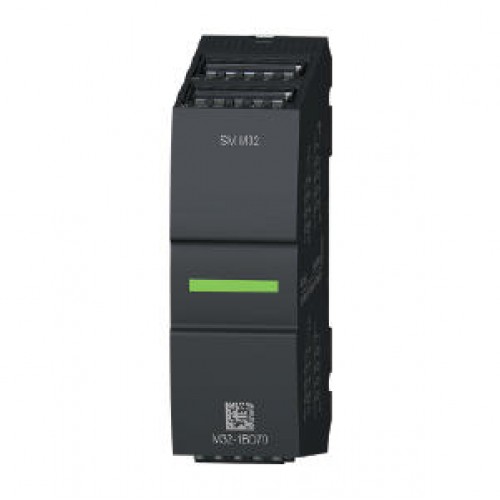

SM M32 - Analog output
