M09-0CB00
Order no. |
M09-0CB00 |
| Type | MICRO Extension 2xRS485 |
| Module ID | - |
General information |
|
| Note | - |
| Features |
Interface [1x RS422/RS485]: PtP: ASCII, STX/ETX, 3964(R), USS
master, Modbus master/slave Interface [1x RS485]: MPI, optional PROFIBUS slave |
Status information, alarms, diagnostics |
|
| Status display | green LED |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | no |
| Diagnostics information read-out | - |
| Supply voltage display | none |
| Group error display | - |
| Channel error display | - |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 35 mm x 88 mm x 26 mm |
| Net weight | 56 g |
| Weight including accessories | 56 g |
| Gross weight | 66 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL certification | in preparation |
| KC certification | in preparation |

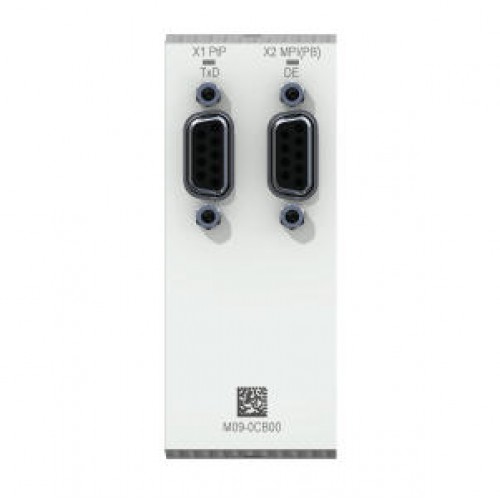

MICRO Extension 2xRS485
- Brand: Yaskawa
- Product Code: M090CB00
- Availability: In Stock
-
$0.00
- Ex Tax: $0.00
Tags: MICRO Extension 2xRS485, M09-0CB00
