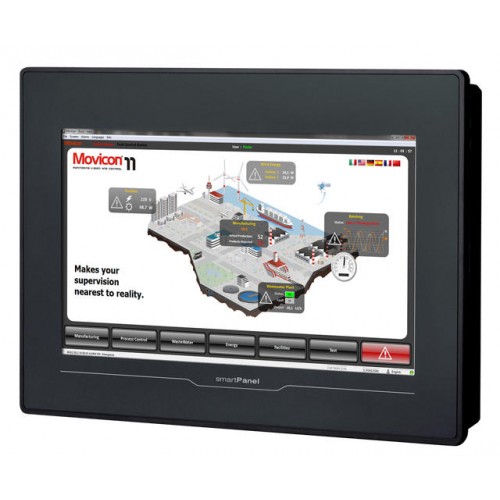

HA1-71A41-0 - HMI | smartPanel
Order no. |
HA1-71A41-0 |
| Type | smartPanel TP310-SM |
General information |
|
| Note | - |
| Features | Display:
10.1" Processor: Cortex-A8 | 1GHz Work memory [MB]: 512 User memory [GB]: 4 Interface onboard: 1x RS232/422/485 | 1x USB-A | 1x RJ45 (Ethernet) Software: Windows Embedded Compact 7 Movicon CE Standard |
Display |
|
| Display size (diagonal) | 10.1 " |
| Display size (width) | 224 mm |
| Display size (height) | 128 mm |
| Resolution | 1024 x 600 / 600 x 1024 |
| Aspect ratio | 16:9 |
| Type of display | TFT color (64K colors) |
| MTBF Backlights (25°C) | 20000 h |
System properties |
|
| Processor | Cortex-A8 1000 MHz |
| Operating system | Windows embedded Compact 7 |
| User software | Movicon 11 CE Standard |
| Work memory | 512 MB |
| User memory | 4 GB |
| Available memory (user data) | 2 GB |
| SD/MMC Slot | - |
| CF Card Slot Typ II | - |
| CFast Slot | - |
Time |
|
| Real-time clock buffered | |
| Clock buffered period (min.) | 2 w |
| Type of buffering | Goldcap |
| Load time for 50% buffering period | 5 h |
| Load time for 100% buffering period | 10 h |
| Accuracy (max. deviation per day) | 8 s |
Operating controls |
|
| Touchscreen | resistive |
| Touch function | Single Touch |
| Keyboard | external via USB |
| Mouse | external via USB |
Interfaces |
|
| MPI, PROFIBUS-DP | - |
| MPI, PROFIBUS-DP connector | - |
| Serial, COM1 | RS232 / RS422 / RS485 |
| COM1 connector | Sub-D, 9-pin, male |
| Serial, COM2 | - |
| COM2 connector | - |
| Number of USB-A interfaces | 1 |
| USB-A connector | USB-A (host) |
| Number of USB-B interfaces | - |
| USB-B connector | - |
| Number of ethernet interfaces | 1 |
| Ethernet | Ethernet 10/100 MBit |
| Ethernet connector | RJ45 |
| Integrated ethernet switch | - |
| Video connectors | - |
| Audio connections | - |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | 18 - 32 VDC |
| Reverse polarity protection | |
| Current consumption (no-load operation) | 0.1 A |
| Current consumption (rated value) | 0.38 A |
| Inrush current | 38 A |
| I²t | 0.33 A²s |
| Power loss | 9 W |
Status information, alarms, diagnostics |
|
| Supply voltage display | none |
Mechanical data |
|
Housing / Protection class |
|
| Material | PC + ABS |
| Mounting | mounting clips |
| Protection class IP front side | IP 66 |
| Protection class IP back side | IP 20 |
| Protection class NEMA front side | Type 2, 4X |
| Protection class NEMA back side | - |
Dimensions |
|
| Front panel | 282 mm x 197 mm x 6 mm |
| Rear panel | 268 mm x 183 mm x 29 mm |
Installation cut-out |
|
| Width | 271 mm |
| Height | 186 mm |
| Minimum | 1.5 mm |
| Maximum front panel thickness | 6 mm |
| Net weight | 840 g |
| Weight including accessories | 971 g |
| Gross weight | 1434 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | -20 °C to 70 °C |
Certifications |
|
| UL certification | yes |
| KC certification | - |
