67S-RRJ0-EB - Panel PC | Panel PC
Order no. |
67S-RRJ0-EB |
| Type | Panel PC PPC021 CE |
General information |
|
| Note | - |
| Features | Display:
21.5” Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 2 GB Operating system and user memory: 2 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows Embedded Compact 7 and Runtime Movicon CE Standard Visualization system Movicon 11.5 Runtime |
Display |
|
| Display size (diagonal) | 21.5 " |
| Display size (width) | 478 mm |
| Display size (height) | 269 mm |
| Resolution | 1080 x 1920 / 1920 x 1080 |
| Aspect ratio | 16:9 |
| Type of display | TFT color (16.7M colors) |
| MTBF Backlights (25°C) | 50000 h |
System properties |
|
| Processor | Intel Celeron Quad core 2 GHz |
| Operating system | Windows embedded Compact 7 |
| User software | Movicon 11 CE Standard |
| Work memory | 2 GB |
| User memory | 2 GB |
| Available memory (user data) | 1600 MB |
| SD/MMC Slot | - |
| CF Card Slot Typ II | - |
| CFast Slot | |
Time |
|
| Real-time clock buffered | |
| Clock buffered period (min.) | 4 y |
| Type of buffering | lithium battery |
| Load time for 50% buffering period | - |
| Load time for 100% buffering period | - |
| Accuracy (max. deviation per day) | 10 s |
Operating controls |
|
| Touchscreen | PCAP |
| Touch function | Dual Touch |
| Keyboard | external via USB |
| Mouse | external via USB |
Interfaces |
|
| MPI, PROFIBUS-DP | - |
| MPI, PROFIBUS-DP connector | - |
| Serial, COM1 | RS232 / RS422 / RS485 |
| COM1 connector | Sub-D, 9-pin, male |
| Serial, COM2 | RS232 / RS422 / RS485 |
| COM2 connector | Sub-D, 9-pin, male |
| Number of USB-A interfaces | 3 |
| USB-A connector | USB-A (host) |
| Number of USB-B interfaces | - |
| USB-B connector | - |
| Number of ethernet interfaces | 2 |
| Ethernet | Ethernet 10/100/1000 MBit |
| Ethernet connector | 2 x RJ45 |
| Integrated ethernet switch | - |
| Video connectors | VGA SubD HD15 |
| Audio connections | Line out, stereo jack 3.5 mm |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection | |
| Current consumption (no-load operation) | 1.2 A |
| Current consumption (rated value) | 1.3 A |
| Inrush current | 1.3 A |
| I²t | 0.35 A²s |
| Power loss | 32 W |
Status information, alarms, diagnostics |
|
| Supply voltage display | none |
Mechanical data |
|
Housing / Protection class |
|
| Material | coated aluminium steel plate |
| Mounting | via integrated pivoted lever |
| Protection class IP front side | IP 66 |
| Protection class IP back side | IP 20 |
| Protection class NEMA front side | - |
| Protection class NEMA back side | - |
Dimensions |
|
| Front panel | 562.4 mm x 382.4 mm x 6.7 mm |
| Rear panel | 542 mm x 362 mm x 54.2 mm |
Installation cut-out |
|
| Width | 547 mm |
| Height | 367 mm |
| Minimum | 3 mm |
| Maximum front panel thickness | 12 mm |
| Net weight | 9.1 kg |
| Weight including accessories | - |
| Gross weight | - |
Environmental conditions |
|
| Operating temperature | -10 °C to 60 °C |
| Storage temperature | -20 °C to 75 °C |
Certifications |
|
| UL certification | yes |
| KC certification | - |

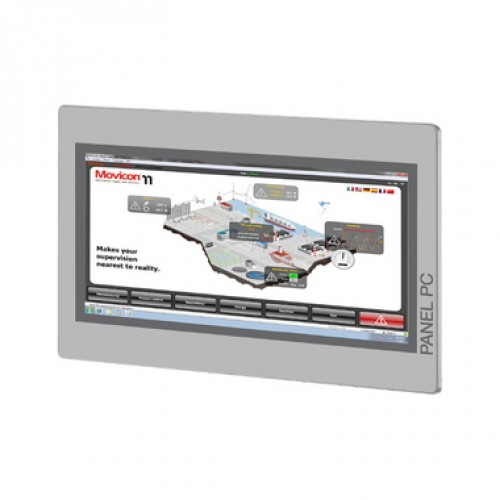

Panel PC PPC021 CE Display: 21.5” 67S-RRJ0-EB
- Brand: Yaskawa
- Product Code: 67SRRJ0EB
- Availability: In Stock
-
$0.00
- Ex Tax: $0.00
