67S-PNJ0-EB - Panel PC | Panel PC
Order no. |
67S-PNJ0-EB |
| Type | VIPA Panel PC PPC021 CE |
General information |
|
| Note | - |
| Features |
Display: 21" Processor: Intel Atom D2550 | 1860 MHz RAM [GB]: 2 User memory [GB]: 2 External slot: CFast Onboard Interface: 2x 232/422/485 | 4x USB-A | 1x VGA | 2x RJ45 (Ethernet) | 1x Audio out Software: WEC7 | Movicon CE Standard |
Display |
|
| Display size (diagonal) | 21.5 " |
| Display size (width) | 478 mm |
| Display size (height) | 269 mm |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 |
| Type of display | TFT color (16.7M colors) |
| MTBF Backlights (25°C) | 50000 h |
System properties |
|
| Processor | Intel Atom Dualcore 1.86 GHz |
| Operating system | Windows embedded Compact 7 |
| User software | Movicon 11 CE Standard |
| Work memory | 2 GB |
| User memory | 2 GB |
| Available memory (user data) | 1200 MB |
| SD/MMC Slot | - |
| CF Card Slot Typ II | - |
| CFast Slot | |
Time |
|
| Real-time clock buffered | |
| Clock buffered period (min.) | 4 y |
| Type of buffering | lithium battery |
| Load time for 50% buffering period | - |
| Load time for 100% buffering period | - |
| Accuracy (max. deviation per day) | 10 s |
Operating controls |
|
| Touchscreen | PCAP |
| Touch function | Dual Touch |
| Keyboard | external via USB |
| Mouse | external via USB |
Interfaces |
|
| MPI, PROFIBUS-DP | - |
| MPI, PROFIBUS-DP connector | - |
| Serial, COM1 | RS232 / RS422 / RS485 |
| COM1 connector | Sub-D, 9-pin, male |
| Serial, COM2 | RS232 / RS422 / RS485 |
| COM2 connector | Sub-D, 9-pin, male |
| Number of USB-A interfaces | 4 |
| USB-A connector | USB-A (host) |
| Number of USB-B interfaces | - |
| USB-B connector | - |
| Number of ethernet interfaces | 2 |
| Ethernet | Ethernet 10/100/1000 MBit |
| Ethernet connector | 2 x RJ45 |
| Integrated ethernet switch | - |
| Video connectors | VGA SubD HD15 |
| Audio connections | Line out, stereo jack 3.5 mm |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection | |
| Current consumption (no-load operation) | 1.2 A |
| Current consumption (rated value) | 1.3 A |
| Inrush current | 1.3 A |
| I²t | 0.35 A²s |
| Power loss | 32 W |
Status information, alarms, diagnostics |
|
| Supply voltage display | none |
Mechanical data |
|
Housing / Protection class |
|
| Material | coated aluminium steel plate |
| Mounting | via integrated pivoted lever |
| Protection class IP front side | IP 65 |
| Protection class IP back side | IP 20 |
| Protection class NEMA front side | - |
| Protection class NEMA back side | - |
Dimensions |
|
| Front panel | 562.4 mm x 382.4 mm x 6.7 mm |
| Rear panel | 542 mm x 362 mm x 54.2 mm |
Installation cut-out |
|
| Width | 547 mm |
| Height | 367 mm |
| Minimum | 3 mm |
| Maximum front panel thickness | 12 mm |
| Net weight | 9.1 kg |
| Weight including accessories | - |
| Gross weight | - |
Environmental conditions |
|
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | -20 °C to 75 °C |
Certifications |
|
| UL certification | yes |
| KC certification | - |

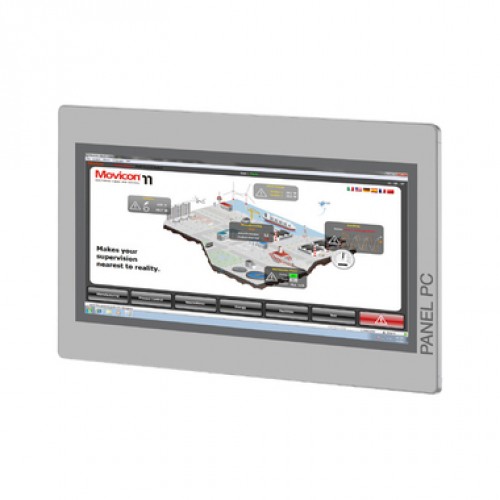

VIPA Panel PC PPC021 CE Display: 21" 67S-PNJ0-EB
- Brand: Yaskawa
- Product Code: 67SPNJ0EB
- Availability: In Stock
-
$0.00
- Ex Tax: $0.00
