62K-JID0-CB - professional Panels | professional Panels
Order no. |
62K-JID0-CB |
| Type | VIPA Touch Panel TP 610C |
General information |
|
| Note | - |
| Features |
Display: 10,4" Processor: XScale-CPU | 1066 MHz RAM [MB]: 256 User memory [MB]: 512 External slot: SD Card | CF Card Onboard Interface: 1x RS232 | 1x 422/485 | 2x USB-A | 1x USB-B | 2x RJ45 (Ethernet) | 1x MPI/PROFIBUS-DP Software: CE6.0 Professional | Movicon CE Standard |
Display |
|
| Display size (diagonal) | 10.4 " |
| Display size (width) | 211.2 mm |
| Display size (height) | 158.4 mm |
| Resolution | 600 x 800 / 800 x 600 |
| Aspect ratio | 4:3 |
| Type of display | TFT color (16.7M colors) |
| MTBF Backlights (25°C) | 50000 h |
System properties |
|
| Processor | Xscale 1.1 GHz |
| Operating system | Windows CE 6.0 Prof. |
| User software | Movicon 11 CE Standard |
| Work memory | 256 MB |
| User memory | 512 MB |
| Available memory (user data) | 380 MB |
| SD/MMC Slot | |
| CF Card Slot Typ II | |
| CFast Slot | - |
Time |
|
| Real-time clock buffered | |
| Clock buffered period (min.) | 6 w |
| Type of buffering | Vanadium Rechargeable Lithium Battery |
| Load time for 50% buffering period | 10 h |
| Load time for 100% buffering period | 48 h |
| Accuracy (max. deviation per day) | 10 s |
Operating controls |
|
| Touchscreen | resistive |
| Touch function | Single Touch |
| Keyboard | external via USB |
| Mouse | external via USB |
Interfaces |
|
| MPI, PROFIBUS-DP | RS485 isolated |
| MPI, PROFIBUS-DP connector | Sub-D, 9-pin, female |
| Serial, COM1 | RS232 |
| COM1 connector | Sub-D, 9-pin, male |
| Serial, COM2 | RS422/485 isolated |
| COM2 connector | Sub-D, 9-pin, female |
| Number of USB-A interfaces | 2 |
| USB-A connector | USB-A (host) |
| Number of USB-B interfaces | 1 |
| USB-B connector | USB-B (device) |
| Number of ethernet interfaces | 2 |
| Ethernet | Ethernet 10/100 MBit |
| Ethernet connector | RJ45 |
| Integrated ethernet switch | |
| Video connectors | - |
| Audio connections | - |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection | |
| Current consumption (no-load operation) | 0.51 A |
| Current consumption (rated value) | 0.7 A |
| Inrush current | 7 A |
| I²t | 0.25 A²s |
| Power loss | 12.2 W |
Status information, alarms, diagnostics |
|
| Supply voltage display | yes |
Mechanical data |
|
Housing / Protection class |
|
| Material | die-cast aluminum |
| Mounting | via integrated pivoted lever |
| Protection class IP front side | IP 65 |
| Protection class IP back side | IP 20 |
| Protection class NEMA front side | - |
| Protection class NEMA back side | - |
Dimensions |
|
| Front panel | 304 mm x 233 mm x 7.5 mm |
| Rear panel | 285 mm x 215 mm x 45 mm |
Installation cut-out |
|
| Width | 287 mm |
| Height | 217 mm |
| Minimum | 1.5 mm |
| Maximum front panel thickness | 6 mm |
| Net weight | 3251 g |
| Weight including accessories | - |
| Gross weight | - |
Environmental conditions |
|
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | -20 °C to 60 °C |
Certifications |
|
| UL certification | yes |
| KC certification | - |

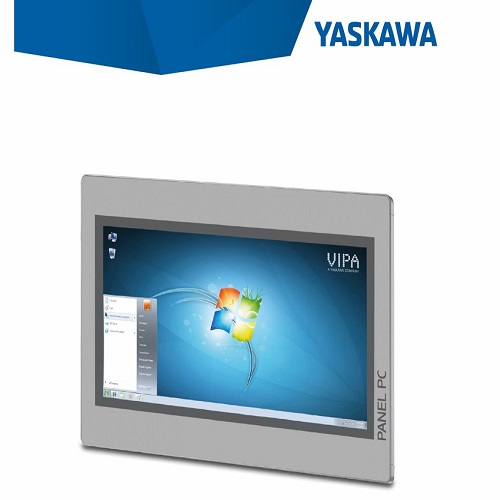

VIPA Touch Panel TP 610C Display: 10,4" 62K-JID0-CB
- Brand: Yaskawa
- Product Code: 62KJID0CB
- Availability: In Stock
-
