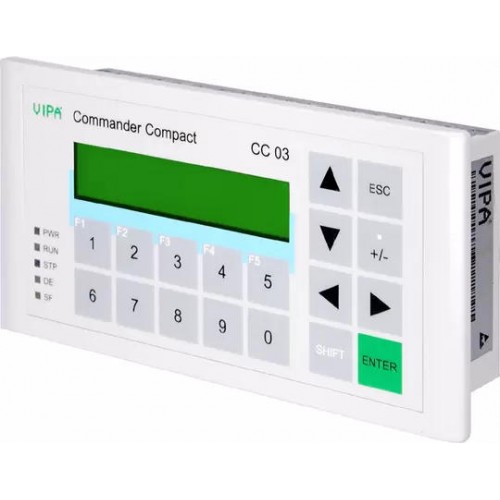

 603-1CC23 - Lines displays | Commander compact

Order no.

603-1CC23
Type VIPA Commander Compact CC 03

General information
Note -
Features Display: 2 x 20 characters
Interface: MP²I
User memory: 128 KB
Languages: DE, EN, FR, ES, IT, SV, NO, DA
Project engineering via VIPA OP-Manager or Siemens ProTool
Integrated PLC-CPU: 32/40 KB work/load memory
16x DI, 16x DO
Up to 4 I/O expansion modules

Display
Number of rows 2
Characters per row 20
Character height 5 mm
Type of display STN with LED backlighting

OP functionality
User memory 128 KB
Number of variables 4096
Language DE/EN/FR/ES/IT/SV/NO/DA

Operating controls
Touchscreen -
Mouse -
Number of system keys 8
Number of soft keys 5

Technical data power supply
Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) 130 mA
Current consumption (rated value) 1 A
Inrush current 60 A
I²t 0.35 A²s
Max. current drain at backplane bus 0.8 A
Max. current drain load supply -
Power loss 8 W
Reverse polarity protection

Technical data digital inputs
Number of inputs 16
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage
Current consumption from load voltage L+ (without load) -
Rated value DC 24 V
Input voltage for signal "0" DC 0...5 V
Input voltage for signal "1" DC 15...28.8 V
Signal logic input -
Input current for signal "1" 7 mA
Connection of Two-Wire-BEROs possible
Max. permissible BERO quiescent current 1.5 mA
Input delay of "0" to "1" 3 ms
Input delay of "1" to "0" 3 ms
Input characteristic curve IEC 61131-2, type 1
Initial data size 2 Byte

Technical data digital outputs
Number of outputs 16
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage -
Current consumption from load voltage L+ (without load) 50 mA
Total current per group, horizontal configuration, 40°C 4 A
Total current per group, horizontal configuration, 60°C 4 A
Total current per group, vertical configuration 4 A
Output voltage signal "1" at min. current L+ (-125 mV)
Output voltage signal "1" at max. current L+ (-0.8 V)
Output current at signal "1", rated value 0.5 A
Output delay of "0" to "1" max. 100 µs
Output delay of "1" to "0" max. 350 µs
Minimum load current -
Lamp load 5 W
Switching frequency with resistive load max. 1000 Hz
Switching frequency with inductive load max. 0.5 Hz
Switching frequency on lamp load max. 10 Hz
Internal limitation of inductive shut-off voltage L+ (-52 V)
Short-circuit protection of output yes, electronic
Trigger level 1 A
Output data size 2 Byte

Technical data counters
Number of counters -
Counter width -
Maximum input frequency -
Maximum count frequency -
Mode incremental encoder -
Mode pulse / direction -
Mode pulse -
Mode frequency counter -
Mode period measurement -
Gate input available -
Latch input available -
Reset input available -
Counter output available -

Status information, alarms, diagnostics
Status display yes
Interrupts no
Process alarm yes
Diagnostic interrupt yes
Diagnostic functions no
Diagnostics information read-out possible
Supply voltage display green LED
Group error display red SF LED
Channel error display red LED per group

Isolation
Between channels of groups to 8
Between channels and backplane bus
Insulation tested with DC 500 V

Load and working memory
Load memory, integrated 40 KB
Load memory, maximum 40 KB
Work memory, integrated 32 KB
Work memory, maximal 32 KB
Memory divided in 50% program / 50% data -
Memory card slot MMC-Card with max. 512 MB

Hardware configuration
Racks, max. 1
Modules per rack, max. 4
Number of integrated DP master 0
Number of DP master via CP 4
Operable function modules 4
Operable communication modules PtP 4
Operable communication modules LAN -

Status information, alarms, diagnostics
Status display yes
Interrupts no
Process alarm yes
Diagnostic interrupt yes
Diagnostic functions no
Diagnostics information read-out possible
Supply voltage display green LED
Group error display red SF LED
Channel error display red LED per group

Command processing times
Bit instructions, min. 0.25 µs
Word instruction, min. 1.2 µs
Double integer arithmetic, min. 2.6 µs
Floating-point arithmetic, min. 50 µs

Timers/Counters and their retentive characteristics
Number of S7 counters 256
S7 counter remanence adjustable 0 up to 64
S7 counter remanence adjustable C0 .. C7
Number of S7 times 256
S7 times remanence adjustable 0 up to 128
S7 times remanence adjustable not retentive

Data range and retentive characteristic
Number of flags 8192 Bit
Bit memories retentive characteristic adjustable adjustable 0 up to 256
Bit memories retentive characteristic preset MB0 .. MB15
Number of data blocks 2047
Max. data blocks size 16 KB
Number range DBs 1 ... 2047
Max. local data size per execution level 1024 Byte
Max. local data size per block 1024 Byte

Blocks
Number of OBs 14
Maximum OB size 16 KB
Total number DBs, FBs, FCs -
Number of FBs 1024
Maximum FB size 16 KB
Number range FBs 0 ... 1023
Number of FCs 1024
Maximum FC size 16 KB
Number range FCs 0 ... 1023
Maximum nesting depth per priority class 8
Maximum nesting depth additional within an error OB 4

Time
Real-time clock buffered
Clock buffered period (min.) 30 d
Type of buffering Vanadium Rechargeable Lithium Battery
Load time for 50% buffering period 20 h
Load time for 100% buffering period 48 h
Accuracy (max. deviation per day) 10 s
Number of operating hours counter 8
Clock synchronization -
Synchronization via MPI no
Synchronization via Ethernet (NTP) no
