321-1FH00 - Signal modules digital | Digital input modules
Order no. |
321-1FH00 |
| Type | SM 321 |
General information |
|
| Note | - |
| Features |
16x DI, in groups of 4 AC 120/230 V For 20 pole front connector |
| SPEED-Bus | - |
Current consumption/power loss |
|
| Current consumption from backplane bus | 35 mA |
| Power loss | 5 W |
Technical data digital inputs |
|
| Number of inputs | 16 |
| Cable length, shielded | 1000 m |
| Cable length, unshielded | 600 m |
| Rated load voltage | AC 120/230 V |
| Current consumption from load voltage L+ (without load) | - |
| Rated value | AC 120/230 V |
| Input voltage for signal "0" | AC 0...40 V |
| Input voltage for signal "1" | AC 79...264 V |
| Input voltage hysteresis | - |
| Signal logic input | Sinking input |
| Frequency range | 47...63 Hz |
| Input resistance | - |
| Input current for signal "1" | 7 mA |
| Connection of Two-Wire-BEROs possible | |
| Max. permissible BERO quiescent current | 1.5 mA |
| Input delay of "0" to "1" | 25 ms |
| Input delay of "1" to "0" | 25 ms |
| Number of simultaneously utilizable inputs horizontal configuration | 16 |
| Number of simultaneously utilizable inputs vertical configuration | 16 |
| Input characteristic curve | - |
| Initial data size | 2 Byte |
Status information, alarms, diagnostics |
|
| Status display | green LED per channel |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | no |
| Diagnostics information read-out | none |
| Supply voltage display | none |
| Group error display | none |
| Channel error display | none |
Isolation |
|
| Between channels | |
| Between channels of groups to | 4 |
| Between channels and backplane bus | |
| Insulation tested with | DC 4000 V |
Datasizes |
|
| Input bytes | 2 |
| Output bytes | 0 |
| Parameter bytes | 0 |
| Diagnostic bytes | 0 |
Housing |
|
| Material | PPE |
| Mounting | Rail System 300 |
Mechanical data |
|
| Dimensions (WxHxD) | 40 mm x 125 mm x 120 mm |
| Net weight | 240 g |
| Weight including accessories | - |
| Gross weight | - |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL certification | yes |
| KC certification | yes |

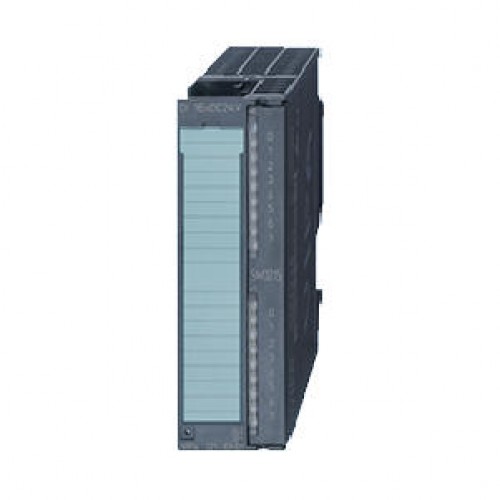

SM 321 - Digital input 16x DI, in groups of 4 AC 120/230 V 321-1FH00
