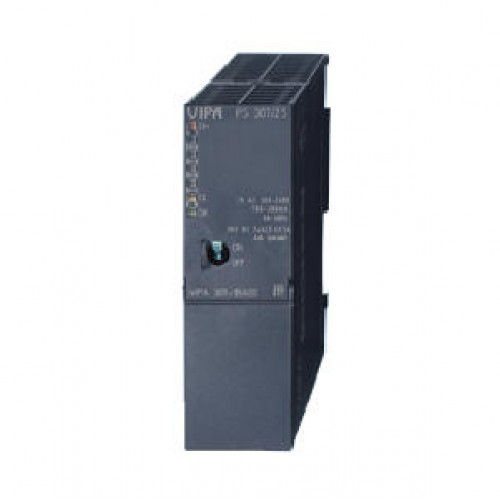

307-1FB70 - Power supply | Power supply
Order no. |
307-1FB70 |
| Type | PS 307S - SPEED-Bus |
General information |
|
| Note | - |
| Features |
DC 24 V 5,5 A Only for 317S PLCs |
| SPEED-Bus | - |
Technical data power supply |
|
| Input voltage (rated value) | DC 24 V |
| Input voltage (permitted range) | DC 20.4...28.8 V |
| Mains frequency (rated value) | - |
| Mains frequency (permitted range) | - |
| Input current (at 120 V) | - |
| Input current (at 230 V) | - |
| Inrush current (at 25 °C) | 5 A |
| I²t | 0.5 A²s |
| Power consumption typ. | 36 W |
| Output voltage (rated value) | 5.2 V |
| Output current (rated value) | 5.5 A |
| Power supply parallel switchable | - |
| Protect type | short circuit (electr.), overload, over temperature (IP20) |
| Ripple of output voltage (max.), BW=20 MHz | 150 mV |
| Efficiency typ. | 90 % |
| Power loss typ. | 6 W |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | no |
| Diagnostics information read-out | none |
| Supply voltage display | green LED |
| Group error display | red LED |
| Channel error display | none |
Housing |
|
| Material | PPE / PA 6.6 |
| Mounting | DIN rail SPEED-Bus |
Mechanical data |
|
| Dimensions (WxHxD) | 40 mm x 125 mm x 120 mm |
| Net weight | 210 g |
| Weight including accessories | - |
| Gross weight | - |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL certification | yes |
| KC certification | yes |
PS 307S - Power supply - SPEED-Bus DC 24 V 5,5 A Only for 317S PLCs 307-1FB70
