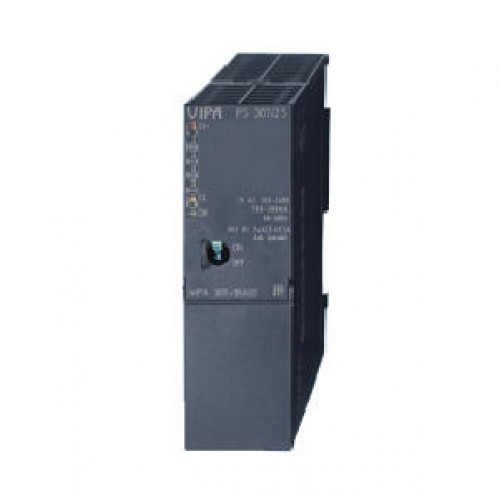

307-1BA00 - Power supply | Power supply

Order no.	307-1BA00
Type	PS 307
General information
Note	-
Features	AC 100...240 V DC 24 V 2,5 A Without manual switch
SPEED-Bus	-
Technical data power supply
Input voltage (rated value)	AC 100...240 V
Input voltage (permitted range)	AC 100...240 V
Mains frequency (rated value)	50...60 Hz
Mains frequency (permitted range)	47...63 Hz
Input current (at 120 V)	0.58 A
Input current (at 230 V)	0.29 A
Inrush current (at 25 °C)	30 A
I²t	1 A²s
Power consumption typ.	67 W
Output voltage (rated value)	24 V
Output current (rated value)	2.5 A
Power supply parallel switchable	-
Protect type	short circuits, overload, vacancy, over temperature (IP20)
Ripple of output voltage (max.), BW=20 MHz	150 mV
Efficiency typ.	90 %
Power loss typ.	6 W
Status information, alarms, diagnostics
Status display	yes
Interrupts	no
Process alarm	no
Diagnostic interrupt	no
Diagnostic functions	no
Diagnostics information read-out	none
Supply voltage display	none
Group error display	none
Channel error display	none
Housing
Material	PPE
Mounting	Rail System 300
Mechanical data
Dimensions (WxHxD)	40 mm x 125 mm x 120 mm
Net weight	310 g
Weight including accessories	-
Gross weight	-
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL certification	-
KC certification	-
