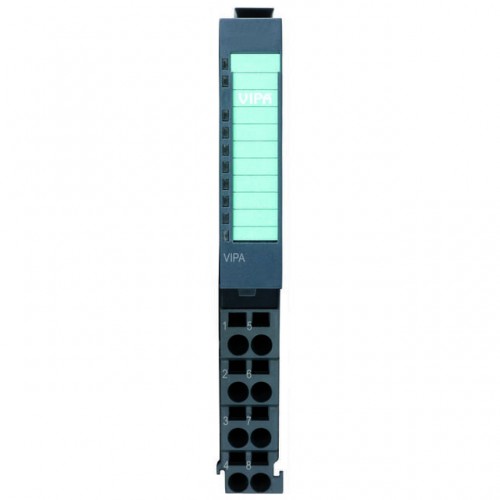

040-1BA00 - Communication processors | RS232/422/485 and other CPs


Type	CP 040 RS232
Module ID	0E01 0700
General information
Note	-
Features	RS232 interface Protocols ASCII, STX/ETX, 3964(R) and Modbus RTU (master, slave)
Current consumption/power loss
Current consumption from backplane bus	110 mA
Current consumption from load voltage L+ (without load)	10 mA
Power loss	1 W
Status information, alarms, diagnostics
Status display	yes
Interrupts	yes, parameterizable
Process alarm	no
Diagnostic interrupt	yes, parameterizable
Diagnostic functions	yes, parameterizable
Diagnostics information read-out	possible
Supply voltage display	green LED
Group error display	red LED
Channel error display	red LED
Point-to-point communication
PtP communication
Interface isolated
RS232 interface
RS422 interface	-
RS485 interface	-
Connector	Terminal module
Transmission speed, min.	150 bit/s
Transmission speed, max.	115.2 kbit/s
Cable length, max.	15 m
Point-to-point protocol
ASCII protocol
STX/ETX protocol
3964(R) protocol
RK512 protocol	-
USS master protocol	-
Modbus master protocol
Modbus slave protocol
Special protocols	-
Datasizes
Input bytes	8 / 20 / 60
Output bytes	8 / 20 / 60
Parameter bytes	21
Diagnostic bytes	20
Housing
Material	PPE / PPE GF10
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	12.9 mm x 109 mm x 76.5 mm
Net weight	60 g
Weight including accessories	60 g
Gross weight	75 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL certification	yes
KC certification	yes
