031-1PA10 - Signal modules analog | Energiemess-Module
Order no. |
031-1PA10 |
| Type | SM 031 - Analog Input |
| Module ID | 0884 2880 |
General information |
|
| Note | - |
| Features |
AI1x 3Ph 230/400V 1/5A Remanent storage of the energy values | diagnostic function Resolution measurement 24 Bit 3-phase and N-conductor Electrical efficiency | elektrical work Harmonic harmonics Phase delay cos Frequency |
Current consumption/power loss |
|
| Current consumption from backplane bus | 60 mA |
| Power loss | 0.9 W |
| Rated load voltage | - |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | yes, parameterizable |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | yes, parameterizable |
| Diagnostics information read-out | possible |
| Module state | green LED |
| Module error display | red LED |
| Channel error display | - |
Isolation |
|
| Between channels | - |
| Insulation tested with | AC 2200 V |
Energy measurement |
|
| Number of channels for measuring | 1* 1..3 phases U/I |
| Voltage measuring range | 0..300 V each phase |
| Coupling voltage measurement | direct or Transformer |
| Current range | 0..5 A each phase |
| Coupling current measurement | Transformer |
| Frequency range | 46...64 Hz |
| Measurement accuracy | 1 % |
| Available measurement |
Active energy Temperature Frequency Voltage RMS Current RMS Active power Reactive power Apparent power Cos phi Harmonic voltage RMS Harmonic current RMS |
| Adjustable limits |
Voltage RMS min/max Current RMS min/max Cos phi min Temperature max. Frequency min/max |
Datasizes |
|
| Input bytes | 16 |
| Output bytes | 16 |
| Parameter bytes | 30 |
| Diagnostic bytes | 20 |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 12.9 mm x 109 mm x 76.5 mm |
| Net weight | 57 g |
| Weight including accessories | 57 g |
| Gross weight | 71 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL certification | - |
| KC certification | - |

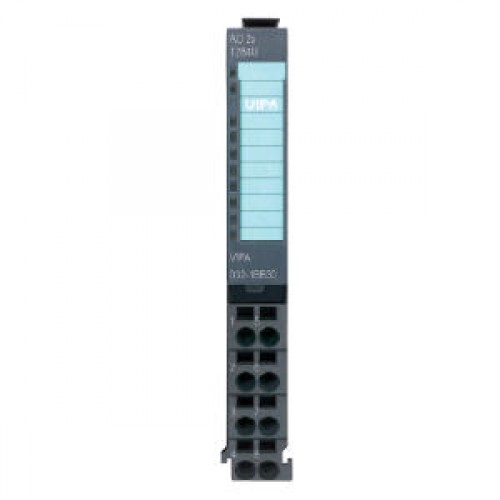

Energy measurement module AI1x 3Ph 230/400V 1/5A 031-1PA10
