017-CEFPR00 - CPUs | CPUs STEP7 programmable, PROFINET
Order no. |
017-CEFPR00 |
| Type | CPU 017PN |
| Module ID | - |
General information |
|
| Note | - |
| Features | Powered by
SPEED7 Work memory [KB]: 512...2.048 PROFINET IO controller for up to 128 participants integrated Interface [2x RJ45]: PROFINET, ModbusTCP master/slave, openCommunication Interface [2x RJ45]: active Ethernet PG/OP communication with DHCP support, switch Interface [2x RS485]: MPI, PtP: ASCII, STX/ETX, 3964(R), USS master, Modbus master/slave Optional: PROFIBUS master/slave Web server SD card slot with locking, up to 64 expansion modules, configurable with SPEED7 Studio, SIMATIC Manager and TIA Portal *OPC UA under preperation, available with the release of hardware version 2* |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection | |
| Current consumption (no-load operation) | 150 mA |
| Current consumption (rated value) | 1.1 A |
| Inrush current | 3 A |
| I²t | 0.1 A²s |
| Max. current drain at backplane bus | 3 A |
| Max. current drain load supply | 10 A |
| Power loss | 7.5 W |
Load and working memory |
|
| Load memory, integrated | 2 MB |
| Load memory, maximum | 2 MB |
| Work memory, integrated | 512 KB |
| Work memory, maximal | 2 MB |
| Memory divided in 50% program / 50% data | |
| Memory card slot | SD/MMC-Card with max. 2 GB |
Hardware configuration |
|
| Racks, max. | 5 |
| Modules per rack, max. | total max. 64 minus number line extensions |
| Number of integrated DP master | 1 |
| Number of DP master via CP | - |
| Operable function modules | 64 |
| Operable communication modules PtP | 64 |
| Operable communication modules LAN | - |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | yes |
| Diagnostics information read-out | possible |
| Supply voltage display | green LED |
| Group error display | red SF LED |
| Channel error display | none |
Command processing times |
|
| Bit instructions, min. | 0.01 µs |
| Word instruction, min. | 0.01 µs |
| Double integer arithmetic, min. | 0.01 µs |
| Floating-point arithmetic, min. | 0.058 µs |
Timers/Counters and their retentive characteristics |
|
| Number of S7 counters | 2048 |
| S7 counter remanence | adjustable 0 up to 512 |
| S7 counter remanence adjustable | C0 .. C7 |
| Number of S7 times | 2048 |
| S7 times remanence | adjustable 0 up to 512 |
| S7 times remanence adjustable | not retentive |
Data range and retentive characteristic |
|
| Number of flags | 16384 Byte |
| Bit memories retentive characteristic adjustable | adjustable 0 up to 8192 |
| Bit memories retentive characteristic preset | MB0 .. MB15 |
| Number of data blocks | 4096 |
| Max. data blocks size | 64 KB |
| Number range DBs | 1 ... 8191 |
| Max. local data size per execution level | 4096 Byte |
| Max. local data size per block | 4096 Byte |
Blocks |
|
| Number of OBs | 24 |
| Maximum OB size | 64 KB |
| Total number DBs, FBs, FCs | 4096 |
| Number of FBs | 4096 |
| Maximum FB size | 64 KB |
| Number range FBs | 0 ... 8191 |
| Number of FCs | 4096 |
| Maximum FC size | 64 KB |
| Number range FCs | 0 ... 8191 |
| Maximum nesting depth per priority class | 16 |
| Maximum nesting depth additional within an error OB | 4 |
Time |
|
| Real-time clock buffered | |
| Clock buffered period (min.) | 30 d |
| Type of buffering | Goldcap |
| Load time for 50% buffering period | 15 min |
| Load time for 100% buffering period | 1 h |
| Accuracy (max. deviation per day) | 10 s |
| Number of operating hours counter | 8 |
| Clock synchronization | |
| Synchronization via MPI | Master/Slave |
| Synchronization via Ethernet (NTP) | Slave |
Address areas (I/O) |
|
| Input I/O address area | 8192 Byte |
| Output I/O address area | 8192 Byte |
| Process image adjustable | |
| Input process image preset | 256 Byte |
| Output process image preset | 256 Byte |
| Input process image maximal | 8192 Byte |
| Output process image maximal | 8192 Byte |
| Digital inputs | 65536 |
| Digital outputs | 65536 |
| Digital inputs central | 512 |
| Digital outputs central | 512 |
| Integrated digital inputs | - |
| Integrated digital outputs | - |
| Analog inputs | 4096 |
| Analog outputs | 4096 |
| Analog inputs, central | 512 |
| Analog outputs, central | 256 |
| Integrated analog inputs | - |
| Integrated analog outputs | - |
Communication functions |
|
| PG/OP channel | |
| Global data communication | |
| Number of GD circuits, max. | 8 |
| Size of GD packets, max. | 22 Byte |
| S7 basic communication | |
| S7 basic communication, user data per job | 76 Byte |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| S7 communication, user data per job | 160 Byte |
| Number of connections, max. | 32 |
Functionality Sub-D interfaces |
|
| Type | X2 |
| Type of interface | RS485 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | |
| MPI | |
| MP²I (MPI/RS232) | - |
| DP master | - |
| DP slave | - |
| Point-to-point interface | |
| 5V DC Power supply | max. 90mA, isolated |
| 24V DC Power supply | max. 100mA, non-isolated |
|
|
|
| Type | X3 |
| Type of interface | RS485 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | |
| MPI | |
| MP²I (MPI/RS232) | - |
| DP master | optional |
| DP slave | optional |
| Point-to-point interface | - |
| 5V DC Power supply | max. 90mA, isolated |
| 24V DC Power supply | max. 100mA, non-isolated |
Functionality MPI |
|
| Number of connections, max. | 32 |
| PG/OP channel | |
| Routing | |
| Global data communication | |
| S7 basic communication | |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| Transmission speed, min. | 19.2 kbit/s |
| Transmission speed, max. | 12 Mbit/s |

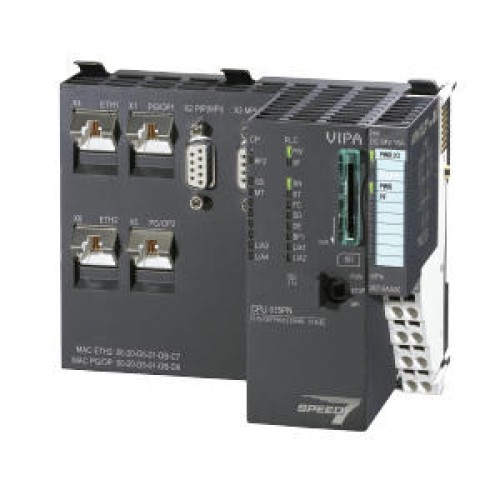

CPU 017PN CPUs STEP7 programmable, PROFINET
