001-1BA20 - Clamp modules | Clamp modules
Order no. |
001-1BA20 |
| Type | CM 001 |
| Module ID | - |
General information |
|
| Note | - |
| Features |
4x DC 24 V clamps 4x DC 0 V clamps |
Clamp parameter |
|
| Terminal voltage max. | DC 30 V |
| Terminal current max. | 10 A |
| Total current per module, max. | 10 A |
Isolated group |
|
| Number of clamps | 4-4 |
| Color of clamps | grey-grey |
| Binding of potential | Field voltage DC 24V-Field voltage DC 0V |
| Potential group current, max. | 10 A-10 A |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 12.9 mm x 109 mm x 52.5 mm |
| Net weight | 46 g |
| Weight including accessories | 46 g |
| Gross weight | 60 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL certification | yes |
| KC certification | - |

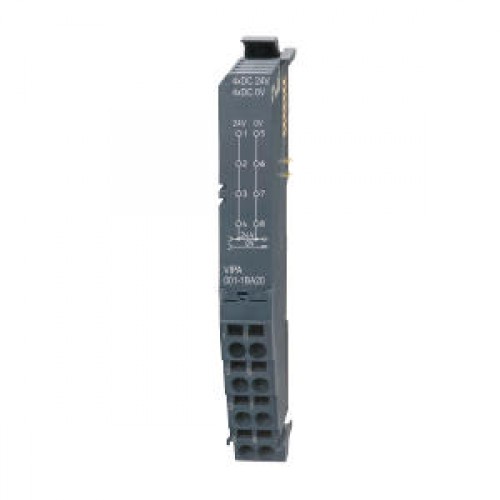

CM 001 - Potential distributor module 4x DC 24 V clamps 4x DC 0 V clamps
- Brand: Yaskawa
- Product Code: 0011BA20
- Availability: In Stock
-
$0.00
- Ex Tax: $0.00
