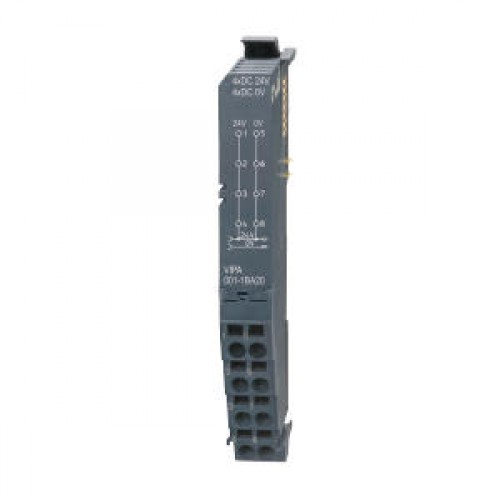

001-1BA10 - Clamp modules | Clamp modules

Order no.	001-1BA10
Type	CM 001
Module ID	-
General information
Note	-
Features	8x DC 0 V clamps
Clamp parameter
Terminal voltage max.	DC 0 V
Terminal current max.	10 A
Total current per module, max.	10 A
Isolated group
Number of clamps	2*4
Color of clamps	grey
Binding of potential	Field voltage DC 0V
Potential group current, max.	10 A
Housing
Material	PPE / PPE GF10
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	12.9 mm x 109 mm x 52.5 mm
Net weight	46 g
Weight including accessories	46 g
Gross weight	60 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL certification	yes
KC certification	-
